How to Install Rough Land 20 in. LED Calorie-free Bar Hidden Bumper Mounting Brackets (06-08 All) on your Ford F-150

Installation Fourth dimension

iii hours

American Muscle

Shop Parts in this Guide

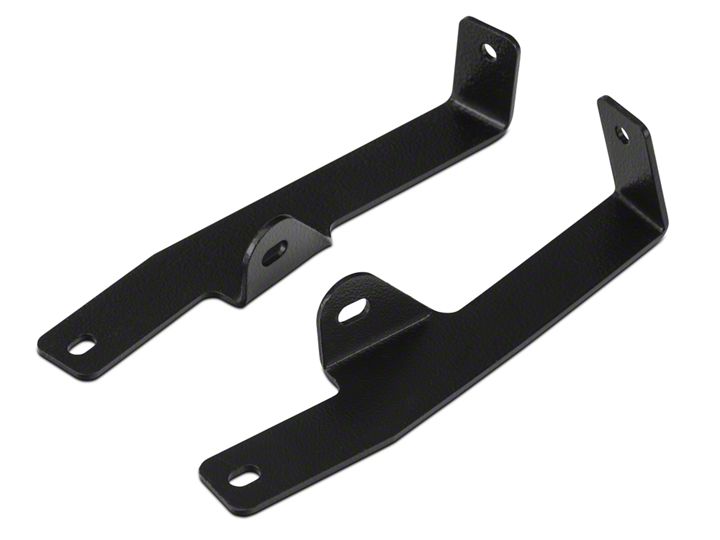

Crude Land xx-Inch LED Light Bar Subconscious Bumper Mounting Brackets (06-08 F-150)

Kit Contents:
(2) Light Brackets
Installation Hardware

INSTALLATION INSTRUCTIONS

i. Using 8mm socket remove the 2 lower air dam bolts. Run into Photo 1.
2. Using a 10mm socket remove the upper bumper bolts on each side. Photo ii.

3. Using a flat screwdriver, remove the factory clip nuts from the upper bumper brackets. See Photograph 3.
4. Place driver's side bracket in bumper. Come across Photo 4.

5. Using factory 8mm hardware bolt mount to lower air dam. Run into Photo 5.
vi. Using supplied 5/sixteen" bolts, nuts, and washers, commodities mount to upper bumper bracket. Run across Photo vi.

7. Tighten upper bolt using i/2" socket and wrench. Run across Photograph 7.
eight. Tighten lower air dam commodities with 8mm socket.
nine. Slide low-cal into bumper from bottom and bolt to driver's side subclass with supplied light hardware. Do Not Tighten.
10. Bolt passenger side mounting bracket to calorie-free with supplied light hardware. Do Not Tighten.
11. Repeat steps 5, half dozen, and 7 for passenger side bracket.
12. Adjust calorie-free position. Using supplied Allen wrench tighten low-cal bolts on commuter and passenger side. Come across Photo 8.
13. Wire low-cal using supplied wiring harness.
